Custom PCB Layout Services & Turnkey High-Speed Design Assembly

Custom PCB Layout Services & Turnkey High-Speed Design Assembly

Accelerate your hardware development with precision-engineered PCB layout services tailored for European safety and quality benchmarks. We bridge the gap between initial schematic design and flawless physical production by applying strict IPC Class 2/3, CE, and EMC/EMI design constraints from day one. Backed by senior layout engineers, native EDA file support (Altium, KiCad, Allegro), and an enterprise-grade Non-Disclosure Agreement (NDA) protocol, we ensure your core IP remains 100% protected while eliminating costly board re-spins before mass assembly.

Quick-Trust Badges

🔒 Enterprise IP Protection: Strict European NDA protocol prior to schematic upload.

Zero-Defect DFM Engineering: 100% pre-production DRC & thermal/stack-up review by senior engineers.

🚀 Rapid Prototype Delivery: Integrated layout-to-assembly workflow in 7–10 working days.

Engineered Strategic Advantages

Enterprise-Grade Data Security & IP Protection

Strict Confidentiality & European Data Compliance

Your custom board layouts and schematics represent your core intellectual property. We implement strict data encryption protocols and routinely sign bilateral Non-Disclosure Agreements (NDAs) before receiving design files. You retain 100% ownership of all native source files (Altium, KiCad, Allegro) and production Gerber packages upon project completion.

Senior DFM & High-Speed Signal Integrity Engineering

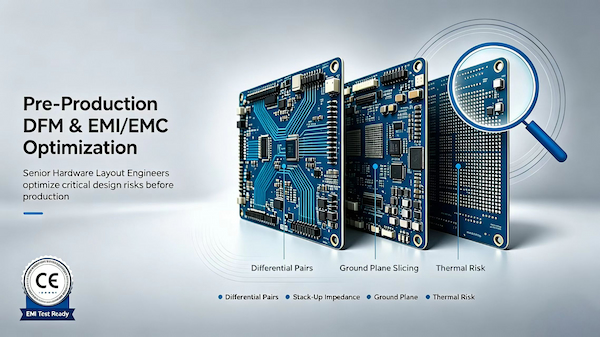

Pre-Production DFM & EMI/EMC Optimization

Unlike automated layout tools that overlook critical noise coupling or high-power thermal risks, every design is managed by dedicated Senior Hardware Layout Engineers. We optimize trace geometry, differential pairs, stack-up impedance control, and ground plane slicing to ensure your product passes CE certification and EMI testing on the first attempt.

Seamless Layout-to-Assembly (End-to-End Control)

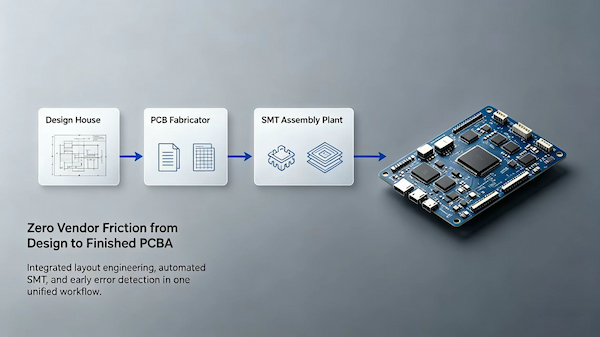

Zero Vendor Friction from CAD to Finished PCBA

Eliminate inter-vendor miscommunication and responsibility shifting between design houses, PCB fabricators, and SMT assembly plants. By integrating layout engineering directly with our automated SMT lines, we catch footprint errors and component sourcing constraints early, streamlining prototype fabrication into full turnkey PCBA.

Specifications

Specification Parameter Technical Capability & Tolerances
Max Layer Count Up to 32 Layers (HDI, Blind & Buried Vias )
Min. Trace Width / Clearance 3 mil / 3 mil (0.075 mm / 0.075 mm)
Controlled Impedance ±5% (Single-ended, Differential Pair, Coplanar Waveguide)
RF / Microwave Design Impedance matching up to 24 GHz (Rogers / Taconic substrates)
Thermal & Power Integrity High-current busbar planning, Heavy copper up to 6 oz

Industry Standards & Output Deliverables

Quality & Manufacturing Standards
IPC-2221, IPC-6012 Class 2/3, CE, RoHS, REACH
Final Design Deliverables
Native Source Files, Gerber RS-274X / Gerber X2, IPC-2581, ODB++, Pick-and-Place (Centroid), Assembly Drawings, Drill Files
DFM Verification Scope
Netlist validation, Footprint vs. Datasheet verification, Stack-up calculation, High-voltage clearance check
