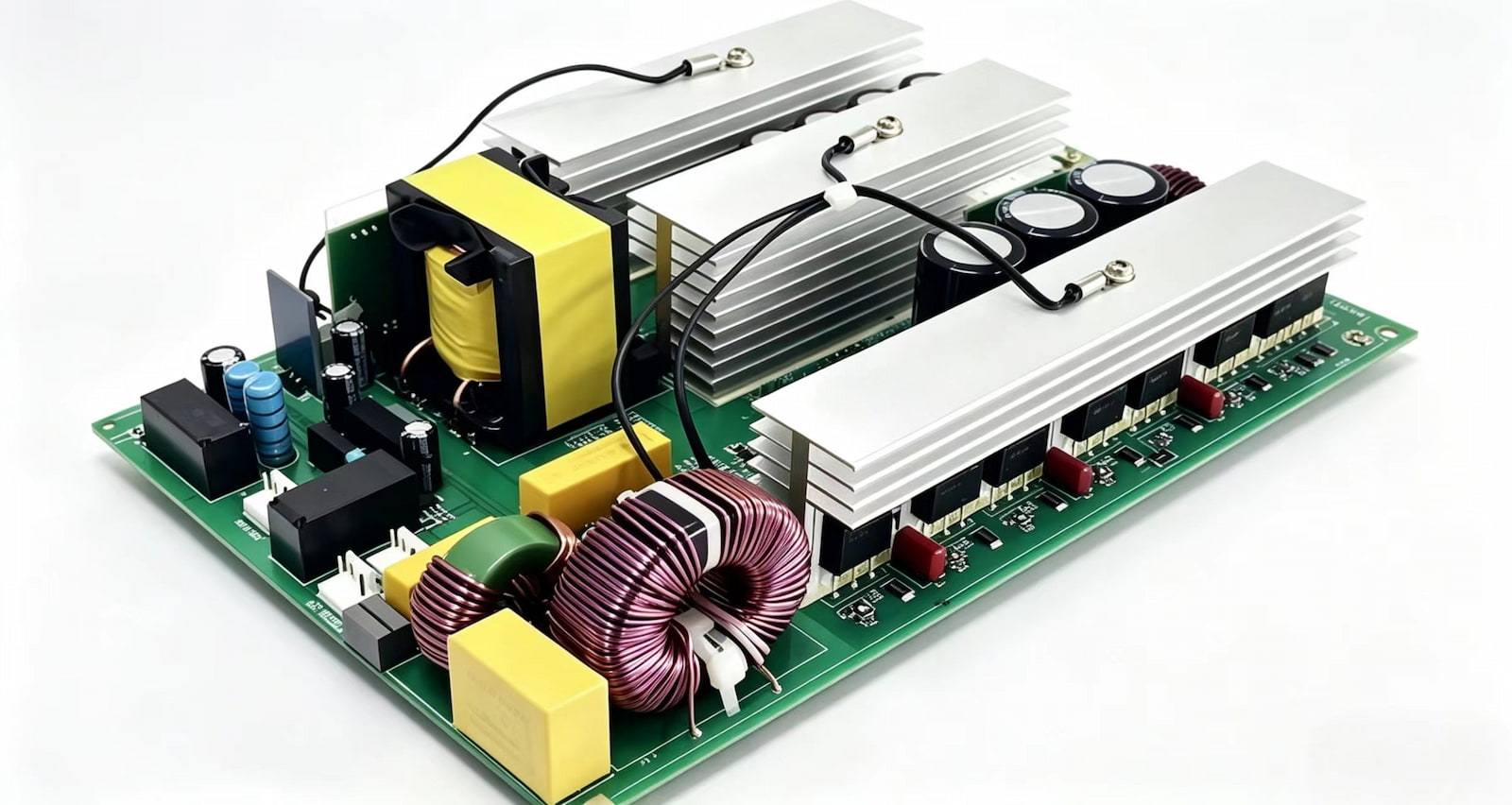

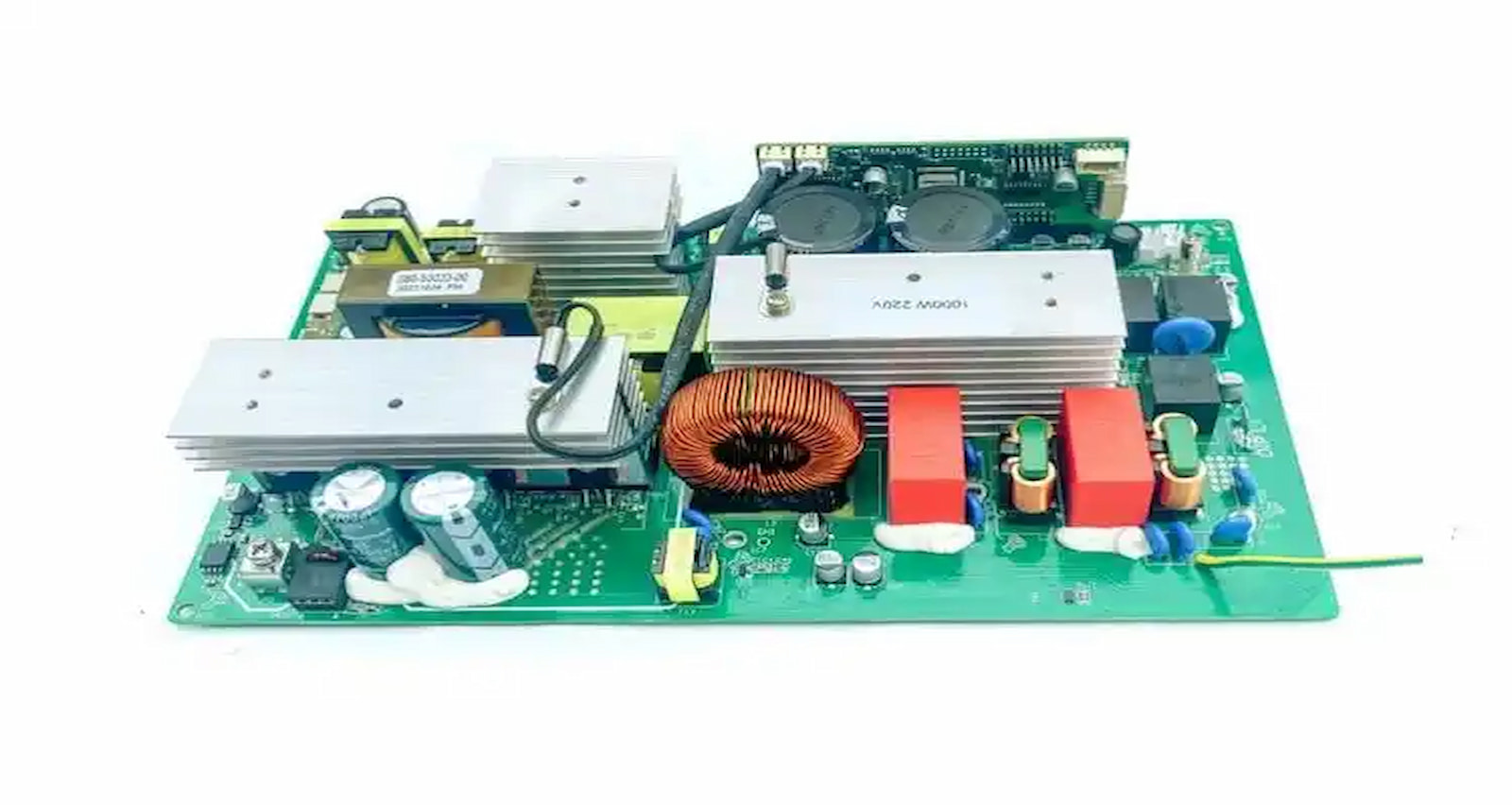

Custom Hybrid Inverter PCB | Turnkey Pure Sine Wave Inverter Control board Solutions

1: Unstable Waveform Outputs & High Total Harmonic Distortion (THD)

Many standard inverter boards struggle to maintain a clean sine wave under fluctuating solar inputs or nonlinear loads. This voltage instability causes high THD, which leads to overheating, buzzing, and fatal damage to high-precision equipment or household appliances.

2: High Energy Conversion Loss in Bidirectional (Charging/Discharging) Modes

In hybrid solar-plus-storage systems, separate and poorly optimized control circuits for PV charging and battery discharging lead to massive energy dissipation, dropping the system's overall round-trip efficiency (RTE).

3: Poor Thermal Management & Low Component Reliability Under High Loads

Continuous high-power inversion generates extreme heat. Inferior component layouts and lack of intelligent thermal throttling on the control board often lead to premature MOSFET burnouts and system shutdowns.

Our proprietary Smart Bidirectional Inverter Control Technology isn't just a basic circuit design; it is a fully integrated engineering platform that ensures perfect synergy between power hardware and software logic. Here is how and why it eliminates your pain points:

1: Real-Time SPWM Tuning for Ultra-Low THD (<2%)

Why it works: Our technology utilizes high-speed DSP processors executing real-time SPWM (Sinusoidal Pulse Width Modulation) feedback algorithms. By sampling the output voltage tens of thousands of times per second, our inverter control board instantly compensates for any waveform distortion. This guarantees a mathematically pure, stable sine wave output with a THD of less than 2%, ensuring 100% safety for the most sensitive loads.

2: Unified Synchronous Rectification & Highly Integrated Bidirectional Topology

Why it works: Instead of utilizing separate, fragmented paths, our hybrid inverter pcb features a unified bidirectional topology powered by advanced software logic. It automatically and seamlessly switches between buck (charging) and boost (inverting) modes using synchronous rectification algorithms. This drastic simplification of the hardware path cuts intermediate circuit losses, maximizing round-trip conversion efficiency up to 96%+.

3: Predictive Thermal Control & Heavy-Copper PCBA Design

Why it works: Every pure sine wave inverter pcb we build integrates a heavy-copper layers layout (up to 3oz/4oz) to significantly lower native circuit resistance and enhance passive heat dissipation. Furthermore, our control technology embeds dynamic thermal monitoring that intelligently scales power distribution before critical temperature thresholds are met, extending component lifespan and guaranteeing reliable 24/7 high-load operations.

We understand that scaling a solar or energy storage brand requires a manufacturing partner who can handle both complex electronics design and stable mass production. That is why we offer a comprehensive Turnkey Pure Sine Wave Solar Inverter control board solution:

Full-Service Hardware & Schematic Design: You share your target specs (e.g., 48VDC to 230VAC, 5kW rated power, specific lithium-battery BMS communication protocols), and our engineering team handles the complete schematic layout and multilayer inverter pcb routing.

Advanced Firmware & MCU Programming: We write the proprietary firmware for the DSP/MCU, embedding our Smart Bidirectional Inverter logic, MPPT algorithms, protection features (over-voltage, short-circuit, over-temperature), and LCD/App communication interfaces.

State-of-the-Art PCBA Manufacturing & Testing: Operating out of our advanced SMT facilities, we handle component sourcing, PCB assembly, and execute 100% rigorous testing—including AOI, ICT, Functional Testing (FCT) under real load simulations, and burn-in aging tests—delivering a plug-and-play, certified control core directly to your factory lines.
