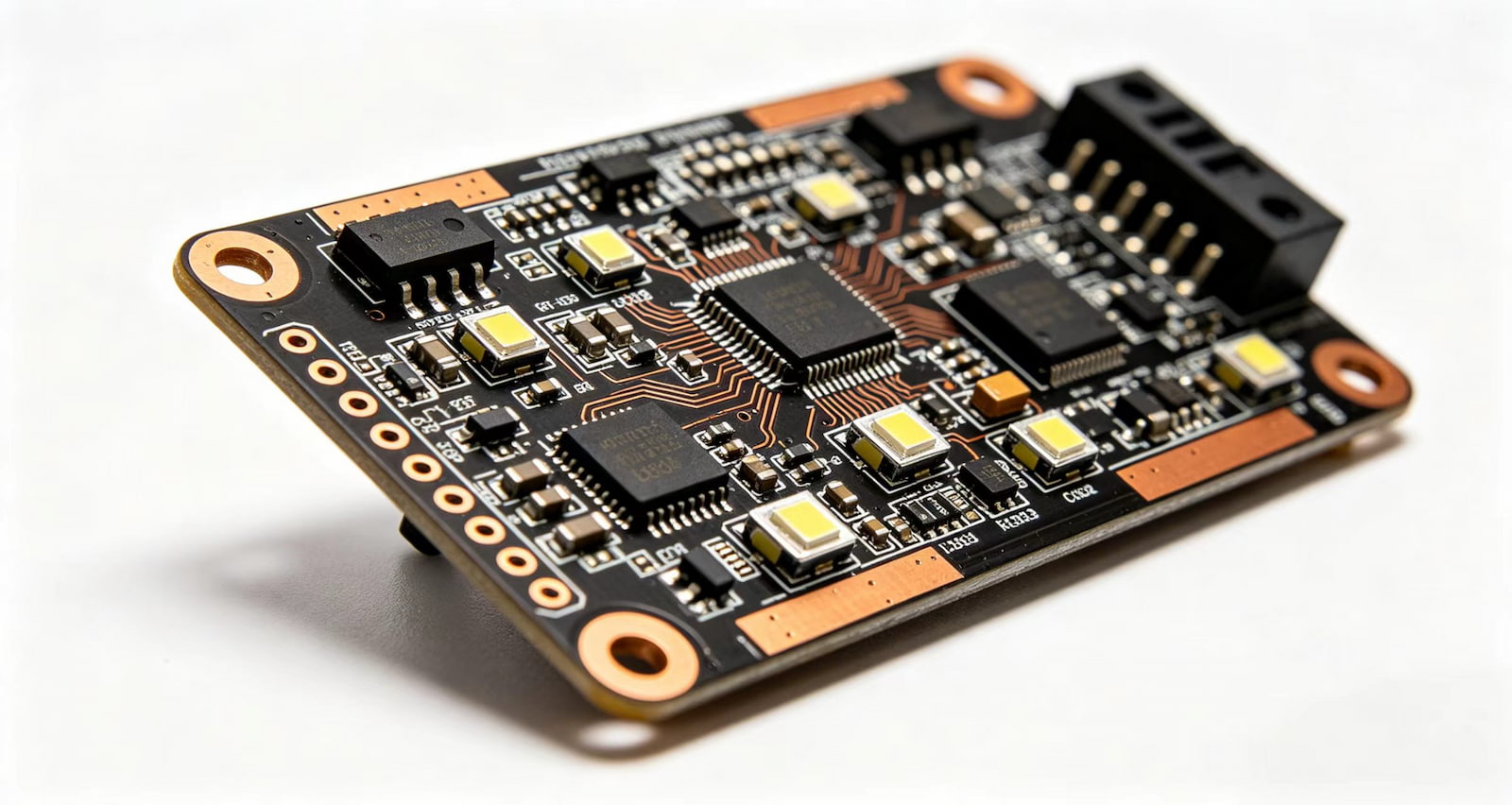

Automotive Grade 8-Channel Matrix LED Driver Board with CAN FD & AEC-Q100 Control

RM Cortex-M7 MCU for adaptive matrix headlight control system
Waterproof automotive lighting controller interface with CAN FD support

Automotive Grade 8-Channel Matrix LED Driver Board with CAN FD & AEC-Q100 Control

This Adaptive Driving Beam (ADB) LED Driver is a high-performance constant current drive platform engineered specifically for modern smart vehicle lighting systems. Acting as the "intelligent power core" of automotive lighting, the product strictly adheres to AEC-Q100/101/200 certification standards. It utilizes a six-layer PCB stack-up design with high-TG FR-4 substrate, covering a full automotive-grade operating temperature range of -40°C to +125°C. With ISO 26262 ASIL-B functional safety certification, it provides zero-failure performance assurance for both OEM and aftermarket upgrade markets.

Inquire Now
Product categories

Technical Architecture & Compliance

▶ Technical Architecture Advantages

  • Automotive-Grade PCB: 6-Layer High-TG FR-4, compliant with IPC-6012DA standards.
  • Full Auto-Grade BOM: 100% AEC-Q certified component supply chain.
  • Modular Waterproof Design: IP67 rated protection, adapted for engine bay environments.
  • EMC/EMI Optimization: Fully compliant with CISPR 25 Class 5 radiation standards.

▶ Certifications & Standards

  • AEC-Q100 Grade 1: Certified for -40℃ to +125℃ operation.
  • ISO 26262 ASIL-B: Functional safety process certification.
  • IATF 16949: Automotive Quality Management System.
  • Compliance: UL 508, RoHS & REACH environmental compliance.

Core Functional Characteristics

▶ 1. Multi-Channel Precision Constant Current Drive

  • 8-Channel Independent Control: 0.1A-3A programmable per channel, accuracy ±1.5%.
  • Dual-Mode Dimming: 100Hz-20kHz PWM (16-bit) + 0-5V Analog dimming.
  • Matrix Control: Multi-zone independent control for ADB adaptive high-beam systems.

Key Indicators:
• Current Matching: <±2%
• Dimming Depth: 0.1%-100% (No Flicker)
• Response Time: <10μs

▶ 2. Smart Diagnosis & Comprehensive Protection (7-Level)

Electrical Protection
  • OVP: >40V auto-cutoff
  • OCP: Cycle-by-cycle limit (<2μs)
  • SCP: Short circuit auto-recovery
  • Reverse Polarity: -16V for 60s
System Protection
  • OTP: 3-level thermal threshold
  • Open Circuit: Real-time diagnosis
  • Load Dump: ISO 7637-2 compliant

▶ 3. Efficient Thermal Management & Power Optimization

  • Smart Thermal Control: 8-point temperature monitoring with dynamic thermal management algorithms to auto-adjust output.
  • High Efficiency: Synchronous Rectification Buck/Boost topology, Efficiency >94% @ Full Load.
  • Power Management: Low standby power (<100μA), CAN/LIN remote wake-up, 9V-36V wide input.

▶ 4. Advanced In-Vehicle Communication Integration

  • Multi-Protocol: CAN FD (5Mbps), LIN 2.2 / SAE J2602, SENT (SAE J2716), Optional 100BASE-T1 Ethernet.
  • Smart Functions: OTA Firmware Upgrade (A/B Partition), UDS Diagnosis (ISO 14229), Programmable Dynamic Lighting Sequences.

▶ 5. Severe Environment Reliability

  • EMC/EMI: CISPR 25 Class 5, ISO 11452-2/4 immunity.
  • Mechanical: ISO 16750-3 Vibration Standard (20G).
  • Chemical: Automotive conformal coating, 96h salt spray test.
  • Thermal Shock: 1000 cycles (-40℃ ↔ 125℃).

Product Detail Images

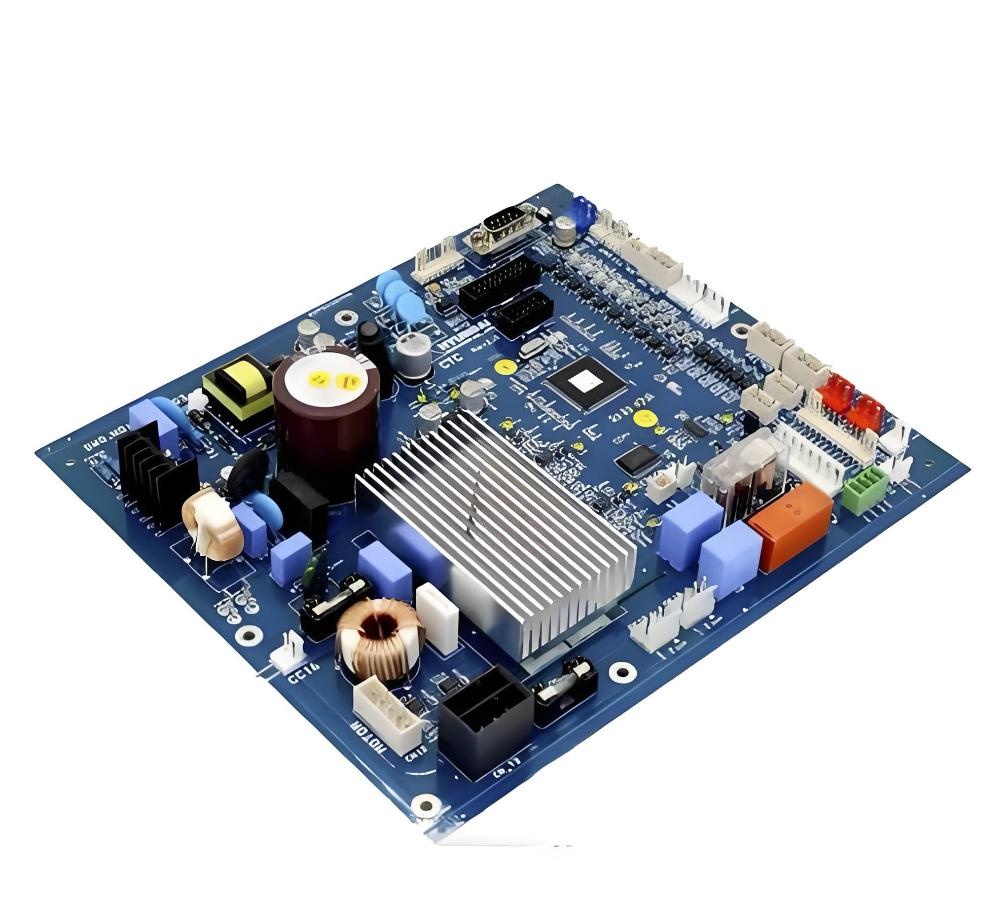

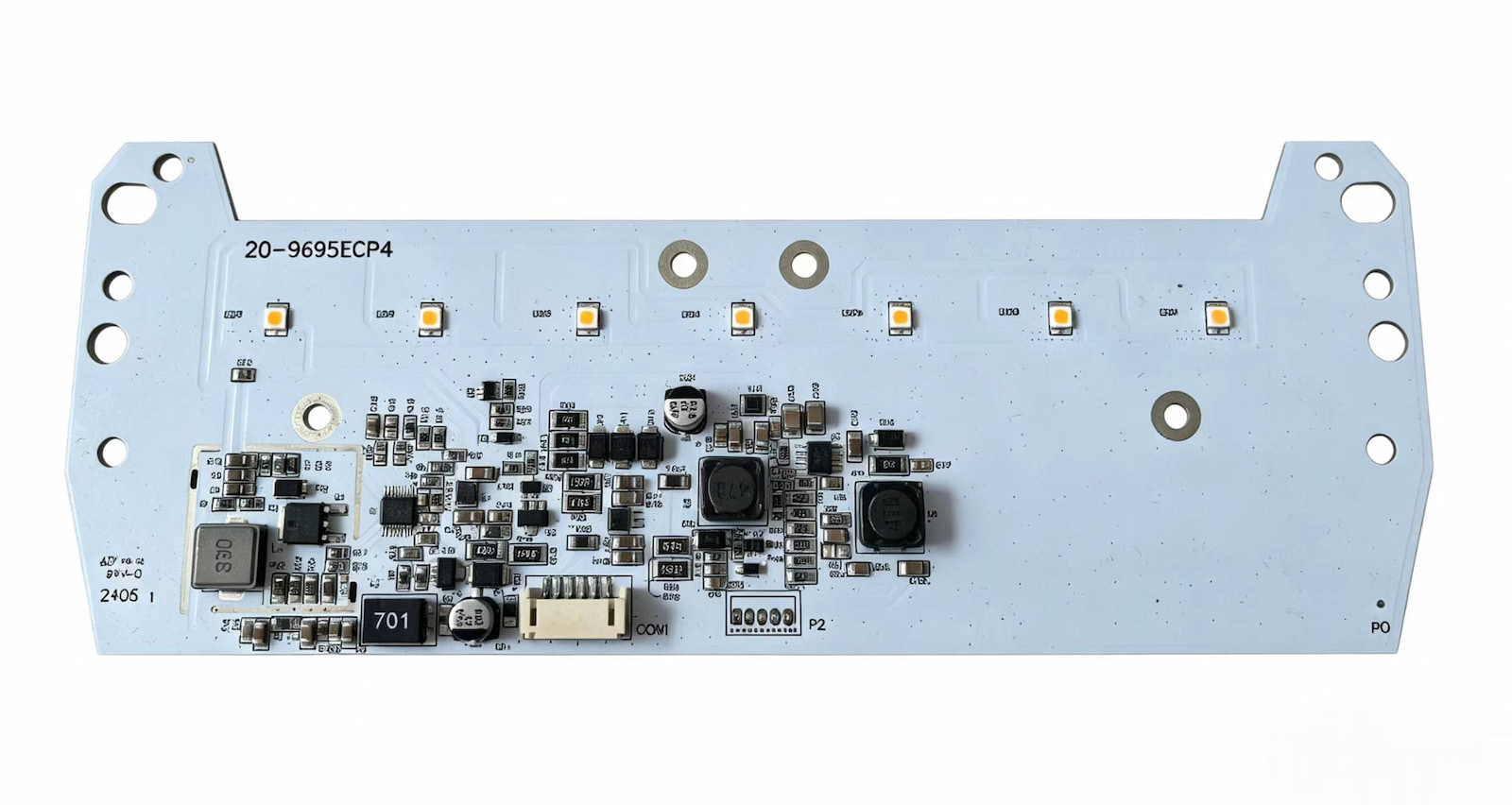

Automotive grade LED driver PCB with AEC-Q100 certified components

Detailed Technical Specifications

Electrical Parameters

Input Voltage Range 9V-36V DC (Compatible with 12V/24V systems) | ISO 16750-2
Working Voltage 9V-18V (12V Sys) | 18V-36V (24V Sys)
Reverse Protection -16V continuous for 60s (ISO 7637-2)
Quiescent Current <100μA (Sleep Mode)
Total Output Power Max 200W (@25℃ ambient)
Efficiency 94% (Full Load)
Dielectric Strength 1500V AC / 1 min (UL Standard)

Control Performance

MCU Master ARM Cortex-M7 300MHz (AEC-Q100 Grade 1)
Output Channels 8 Independent Isolated Outputs
Current Per Channel 0.1A-3A Programmable (Peak 5A/10ms)
Current Accuracy ±1.5% (Full Temp Range) | ±1% @25℃
PWM Dimming 100Hz-20kHz, 16-bit Res, 0.1% Step
Switching Freq 200kHz-2.2MHz Programmable

Communication Interfaces

Interface Type Standard / Spec Function
CAN FD 2× Channels, ISO 11898-2 Max 5Mbps, Error Frame Detection
LIN 2× Channels, LIN 2.2 Master/Slave Selectable
SENT 1× Channel, SAE J2716 High-Precision Sensor Interface
Diagnostic ISO 14229 UDS Protocol DTC Read & Clear
Digital I/O 6× Inputs (3.3V/5V/12V) Configurable Pull-up/down
